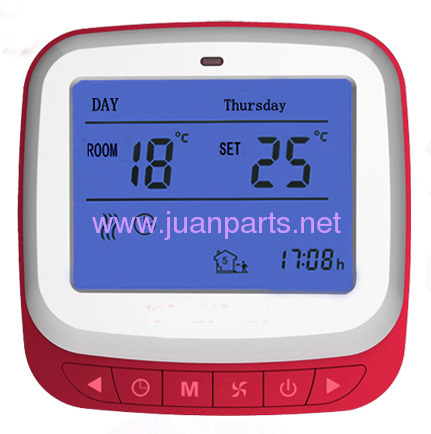

Thermostat for floor (warm-water) heating system of WSK-9D

Price:	1.0~10.0 USD
Payment Terms:	T/T,L/C,WU,
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: WSK-9D

Production Capacity: 80000pcs per month

Delivery Date: 30days

Theory: Temperature Controller

Color: White

Means of Transport: Ocean,Air,

Packing: 50pcs/ctn

Brand Name: JUAN

Usage: Indoor

Specifications
1. 7 days 6 cycle programmable
2.European Elegant high quality design
3.long life service

This styles is our new product for the medium and high customers. It is an intelligent thermostat which has the function of control automatically time-phased. It mainly applies to heat the floor of building, and has the function of overheating protecting. It meets the customers' high request in temperature control. This type also can set up6 different warm temperature in 6 different time. It could not only meet the customers' request in temperature, but has the function of energy saving. This type of thermostat embodies the modern temperature controller’s new concept: comfortable and energy saves.

WSK-9D is often suitable for the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings.

Basic function:: 1.manual on/off control output for heating device,

2. Multi period programe (Monday-Sunday, 6 temperature setting up in6 periodsin

one day)

3. indoor temperature measure and display

4.floor temperature measure and display

5.temperature adjusting

6. double sensors

Optional function:: 1. Infrared ray remote control

2.Backlight

Poducts Features

1. tt'smade of ABS Inflaming retarding plastic
2.The desing of appearangce is protected by patent.

3..The controller is in beautifuldesign appearance and touches smoothly.

4. It also owns good safety performance and long service life.

Technical Paramaters

Operating Temperature	5°C-35°C	Output Rated Power	≤3000W
Loading Current	GA:3A GB:25A	Self-consumption Power	<2W
Control Accuracy	±1°C	Dimension	*868613mm*
Electric Equipment Parameters	220VAC±10%	Innner Box Size	*17011545mm*
Related Frequency	50/60Hz	Outer cartoon Size	*580350265mm*
Net Weight	13 kg	Gross Weight	13.5kg
